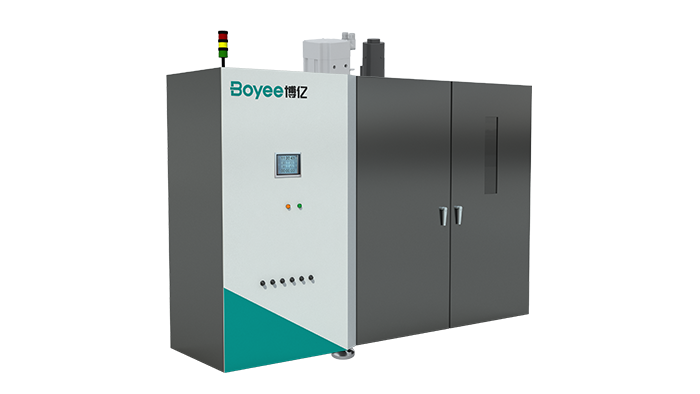

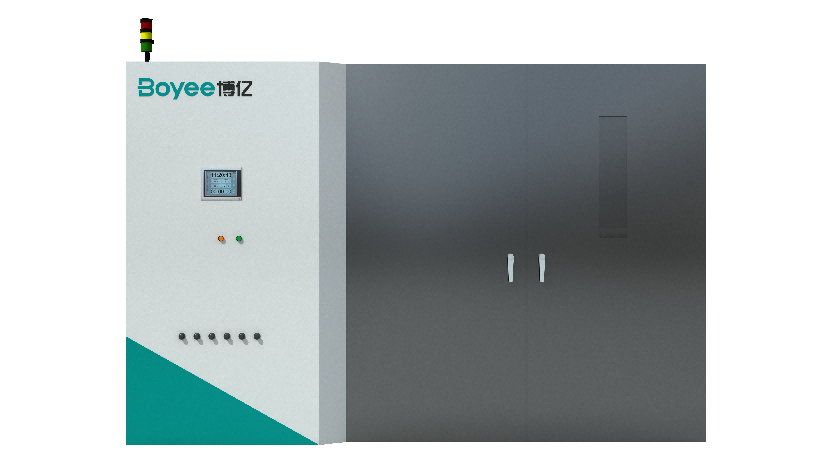

CVD SWCNT Growth System

The stainless steel sealing structure is used as the furnace body, equipped with high-quality furnace chamber, heating section is 1815mm and control system, with accurate temperature control.

Download manual

Equipment advantage

5 Grinding Modes Available

All-ceramic Grinding Chamber

Ceramic Stirring Shaft and Rotor System

All-ceramic Construction Eliminates Contamination and Wear Issues

Cooling Temperature Control System and Drive Control System

Same series of products

Small diameter ( single tube )

Large diameter ( single tube )

Large diameter ( double tube )

Small diameter ( single tube )

Technical Specifications：

Alundum tube

Tube material

φ80*1800

Furnace tube size (mm)

30

Heating power (kw)

±5

Temperature uniformity(℃)

~6

Growth efficiency (g/h)

2.3x0.8x1.5

Overall dimension L*W*H(m)

Large diameter ( double tube )

Technical Specifications：

Carborundum tube

Tube material

φ220*2200×2

Furnace tube size (mm)

80

Heating power (kw)

±5

Temperature uniformity(℃)

~60

Growth efficiency (g/h)

3.5x1.2x2.1

Overall dimension L*W*H(m)

Large diameter ( single tube )

Technical Specifications：

Carborundum tube

Tube material

φ220*2200

Furnace tube size (mm)

60

Heating power (kw)

±5

Temperature uniformity(℃)

~30

Growth efficiency (g/h)

3x1x1.8

Overall dimension L*W*H(m)

Optional rotors

The grinding system can choose turbine and rod pin according to the requirements:

Turbine rotor

Providing more gentle and meticulous grinding effect can effectively prevent excessive material dispersion and improve TurboMax patented Turbine(Turbo) structure grinding quality and accuracy

Rod pin rotor

The rod-pin rotor structure has high linear velocity, which can form continuous strong grinding in the grinding（Chamber), and the impact and grinding effect on the material is more intense
