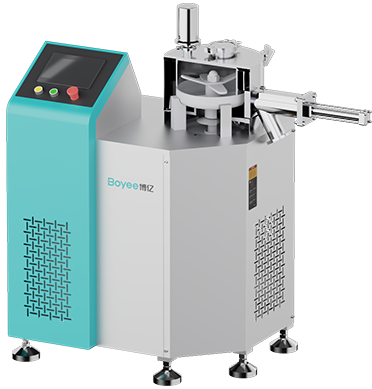

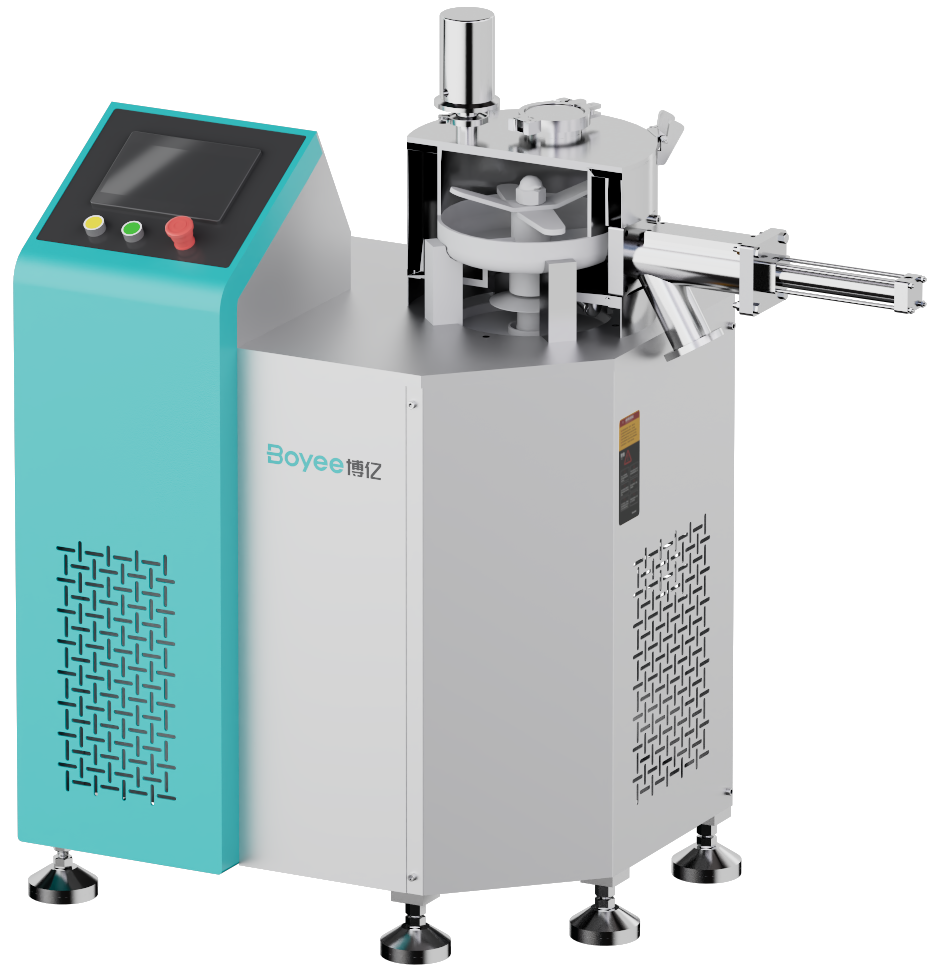

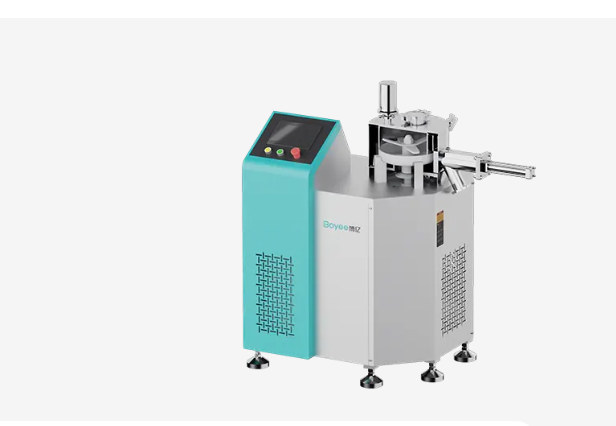

High-Speed Mixer

High-Speed Mixer

Customized for sulfide solid electrolytes and dry electrode applications, this integrated system combines mixing, pulverizing and plasticizing functions. The inert gas

protection system ensures safe mixing of sulfide materials, while multi-speed precision control adapts to dry electrode fiberization requirements. Full-range

temperature control meets the demands of sensitive powders, and the vacuum-sealed airtight structure effectively isolates external contamination.



High-Speed Mixer
Equipment advantage
01

Multi-Speed Precise Control

02

Vacuum Sealed Mixing

03

Whole-Area Temperature Control

04

High-Shear Mixing

05

All-Process-Adaptive

Same series of products

BYHH-5L

BYHH-10L

BYHH-20L

BYHH-50L

BYHH-100L

BYHH-200L

BYHH-5L

4

Volume (L)

15-42

Linear velocity (m/s)

2.2

Motor power (kw)

500

Weight (kg)

1200 ×600×1300

Dimensions (mm)
BYHH-10L

8

Volume (L)

15-42

Linear velocity (m/s)

4

Motor power (kw)

800

Weight (kg)

1300 ×700×1400

Dimensions (mm)
BYHH-20L

16

Volume (L)

15-42

Linear velocity (m/s)

11

Motor power (kw)

1000

Weight (kg)

1400 ×750×1500

Dimensions (mm)
BYHH-50L

42

Volume (L)

13-42

Linear velocity (m/s)

15

Motor power (kw)

1500

Weight (kg)

1600 ×800×1700

Dimensions (mm)
BYHH-100L

85

Volume (L)

13-42

Linear velocity (m/s)

18.5

Motor power (kw)

1800

Weight (kg)

1800 ×900×1800

Dimensions (mm)
BYHH-200L

170

Volume (L)

15-40

Linear velocity (m/s)

22

Motor power (kw)

2000

Weight (kg)

2000 ×950×1900

Dimensions (mm)

Brand new product launch! Boyee High-Speed ​​Mixer
