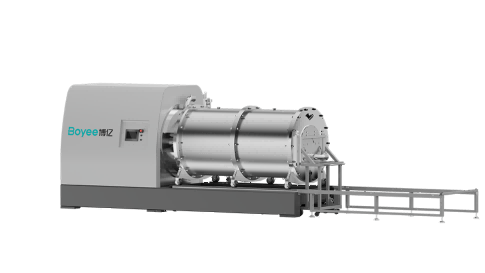

NMM Direct-Drive Nano Bead Mill

The NMM direct-drive nano bead mill is a high-efficiency equipment with core grinding and dispersion capabilities. Adopting an advanced screen separation technology, it delivers high-efficiency and rapid grinding and dispersion, and features a large processing capacity. As a nano material production device, it fully caters to the demands of the high-end market. Capable of nano-scale fine grinding and equipped with a long-lasting screen system, it is an ideal choice for large-scale and high-standard production scenarios.

Contact us

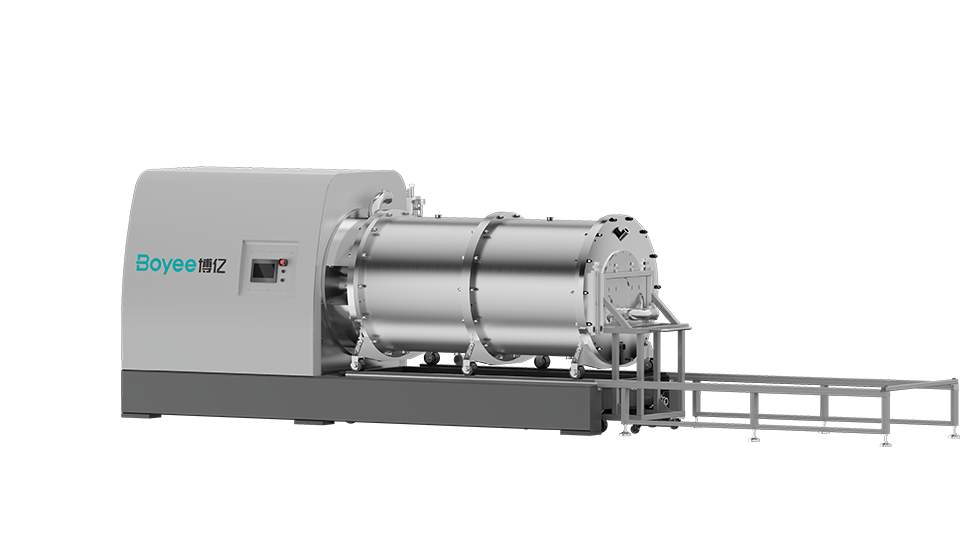

NMM Direct-Drive Nano Bead Mill
Download manual
Key Advantages of the NMM Direct-Drive Nano Bead Mill
Permanent Magnet Direct-Drive Motors: Energy-Saving and Cost-Effective

Equipped with a high-efficiency, water-cooled permanent magnet motor, the system features a sim plified design with a low failure rate. Compared to traditional drive systems, it significantly reduces energy consumption and isideal forlarge-scale industrial applications.

Wear- and Corrosion-Resistant Silicon Carbide Liners

Constructed from high-grade silicon carbide, these liners offer exceptional wear and corrosion resistance along with excellent thermal conductivity, rapidlydissipating grindingheat to maintain stable processingtemperatures.

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The high-strength, wear-resistant design delivers elevated energy density, drivingthe grindingmedia to collide, rub, and shear against the material to achieve nano-level fine grinding.

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The high-strength, wear-resistant design delivers elevated energy density, drivingthe grinding media to collide, rub, and shear against the material to achieve nano-level fine grinding.

Same series of products

NMM-1000L

NMM-2000L

NMM-2000L

NMM-3000L

NMM-1000L
Equipment characteristics:

Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective

Wear- and Corrosion-Resistant Silicon Carbide Liners

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation

Double-Ended Mechanical Sea! for Leak-Free Operation

1000

Effective Chamber Volume（L）

650

Motor（KW）

290

Spindle Speed（r/min）

0.1-2.0

Grinding Media Size（mm）

2520-2880

Zirconia Bead Capacity（KG）

5000X2000X2300

Dimensions（mm)
NMM-2000L
Equipment characteristics:

Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective

Wear- and Corrosion-Resistant Silicon Carbide Liners

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation

Double-Ended Mechanical Sea! for Leak-Free Operation

Make a variety of materials meet personalized needs

Easy to operate and clean

2000

Effective Chamber Volume（L）

950

Motor（KW）

0-270

Spindle speed(r/min)

0.3-1.0

Diameter of grinding medium(mm)

3780-4320

Zirconia Bead Capacity（KG）

5300x2200x2400

Dimensions（mm)
NMM-1500L
Equipment characteristics:

Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective

Wear- and Corrosion-Resistant Silicon Carbide Liners

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation

Double-Ended Mechanical Sea! for Leak-Free Operation

Make a variety of materials meet personalized needs

Easy to operate and clean

2000

Effective Chamber Volume（L）

1300

Motor（KW）

0-270

Spindle speed(r/min)

0.3-1.0

Diameter of grinding medium(mm)

5040-5760

Zirconia Bead Capacity（KG）

5600x2200x2400

Dimensions（mm)
NMM-3000L
Equipment characteristics:

Permanent Magnet Direct-Drive Motors. Energy-Savingand Cost-Effective

Wear- and Corrosion-Resistant Silicon Carbide Liners

The Pin-Type Rotor Features High Energy Density Significantly Boosting Crushing Efficiency

The Wedge-Wire Filter Screen Prevents Bead Trapping, Ensuring Seamless Separation

Double-Ended Mechanical Sea! for Leak-Free Operation

Excellent cooling performance

Make a variety of materials meet personalized needs

Easy to operate and clean

3000

Effective Chamber Volume（L）

2500

Motor（KW）

0-270

Spindle speed(r/min)

0.3-1.0

Diameter of grinding medium(mm)

7560-8640

Zirconia Bead Capacity（KG）

6800x2200x2400

Dimensions（mm)
Optional rotors

The grinding system can choose turbine and rod pin according to the requirements:

Turbine rotor

Providing more gentle and meticulous grinding effect can effectively prevent excessive material dispersion and improve TurboMax patented Turbine(Turbo) structure grinding quality and accuracy

Rod pin rotor

The rod-pin rotor structure has high linear velocity, which can form continuous strong grinding in the grinding（Chamber), and the impact and grinding effect on the material is more intense

Optional materials

Zirconia

Polyurethane (PU)

Silicon Carbide
